Do-It-Yourself Homemade Electronic Coyote/Predator Caller
Being the Do-It-Yourself guy I am, I thought a homemade coyote caller would be a lot cheaper than a commercial electronic call and a fun project for me to tinker around with.
I started out using an old Browning flashlight housing. I got an inexpensive mp3 player and the Speco SPC-5P speaker from eBay and a old double male audio cable I had kicking around the house. The rest of the parts needed I ordered from Radio Shack.
The battery pack holds eight batteries so to achieve 9 volts (6 times 1.5v AA batteries equals 9v) I placed a piece of copper tubing across one of the two AA battery slots. Having this larger pack of batteries lasts a lot longer than just a single 9v battery.

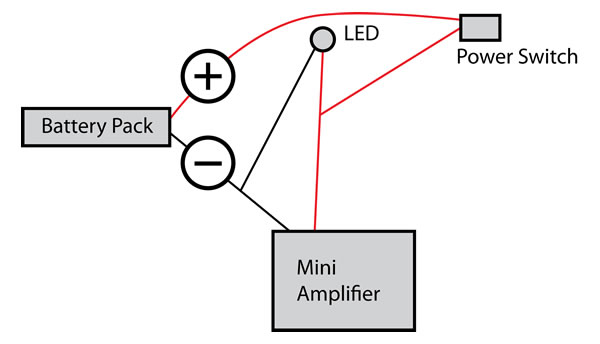

I then cut the bottom of the mini amplifier off so that it would fit inside the flashlight case and wired it as shown in the diagram.
Using audio editing software, I changed the meta tags of all my predator MP3 sounds. I changed the "artist" tag to different animal sounds. In this way, I could browse by artist and bring up all the rabbit or coyote sounds etc. I set the MP3 player to repeat so I can pause and play the same sound over and over.
Another thing I like to do with my MP3 files is make 20-30 minute calling scenario MP3 files. I do this by bringing various sounds into my audio editing software. For instance, I will have two minutes of silence at the beginning, then I will have a series of mouse squeaks and then a minute or so pause. Then some louder rabbit squalls and then a couple of series of the rabbit squalls over a ten-minute window. Towards the end, I will often throw in a coyote challenge bark/howl and then a distress ki-yi bark. You can also mix in bird sounds all along the way, like a crow or a magpie. I think you get the idea. You can have fun and make all sorts of predator calling sequences.
A pair of coyotes taken with my homemade electronic caller. You can read more about this hunt in my 243 WSSM Model 1885 Coyote Double journal entry.
When I have these long pre-made audio sequences, I can set my call out in front of me, however far I want. I now have two minutes to get back into position before the mouse squeaking starts. Then I sit back and enjoy the show.
Basic parts list that I used:
- MP3 Player - Phone - Bluetooth receiver (connected via Bluetooth to your phone)
- Housing, from a flashlight case or ammo box etc.
- Speco SPC-5P Speaker
- I used a 8 "AA" Battery Holder with copper pipe across two battery slots or a better option is a 6 AA battery holder
- Red LED, Optional but nice to know when it is on.
- 9V Battery Snap Connectors
- 3-Amp Push On-Push Off Switch
- 3.5mm male to male audio extension cable with the Amazon amp below a female 3.5 mm with 2 bare wires will need to be connected to the amp.
- Mini Amp (radio Shack Cat. No. 277-1008C) - If you can't find the Radio Shack Amp this amp should work from Amazon.

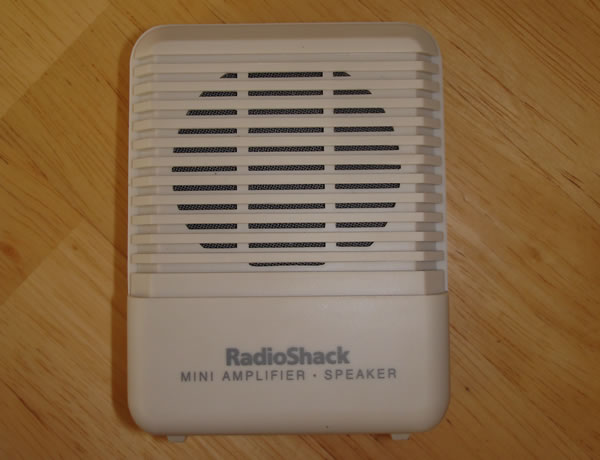

Mini Amp before I cut the bottom off.

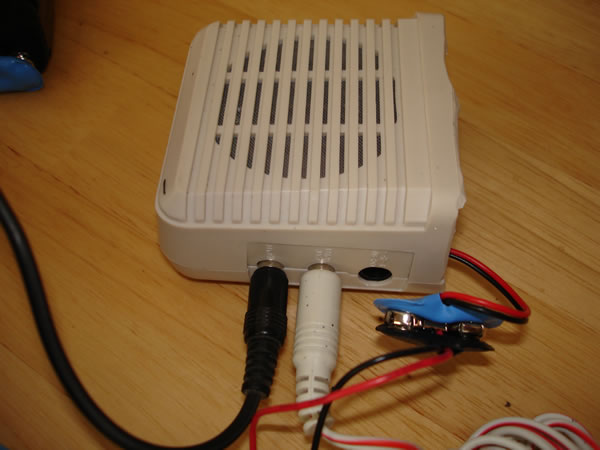

Mini Amp with bottom battery compartment removed.

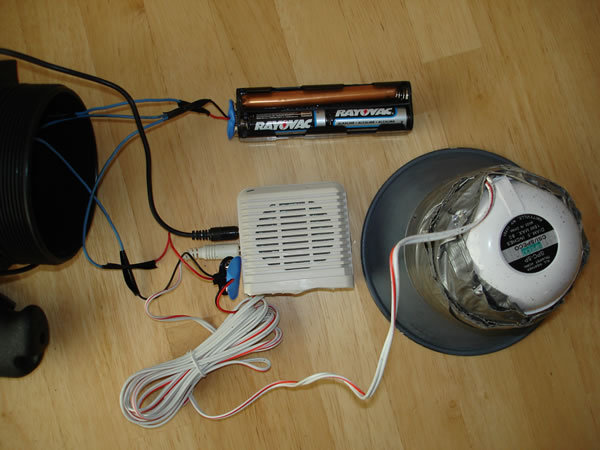

Battery pack, Mini Amp, and Speaker.

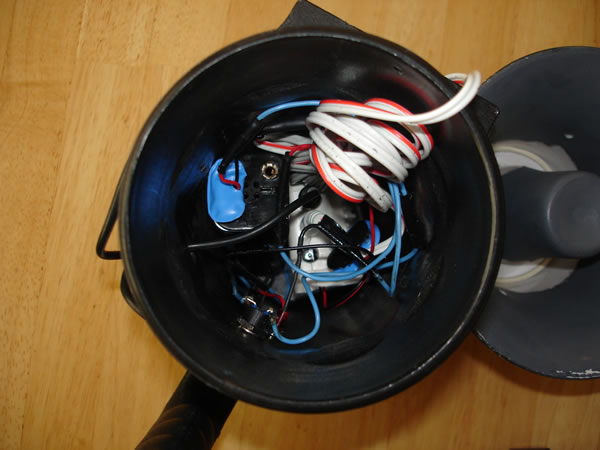

View inside the main compartment.

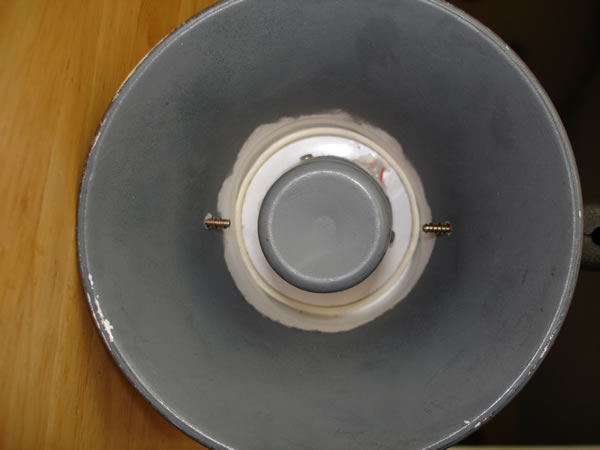

I drilled two holes through the speaker and used screws to hold the speaker in place.
View of the outside before wrapping it in a removable camouflage wrap.
